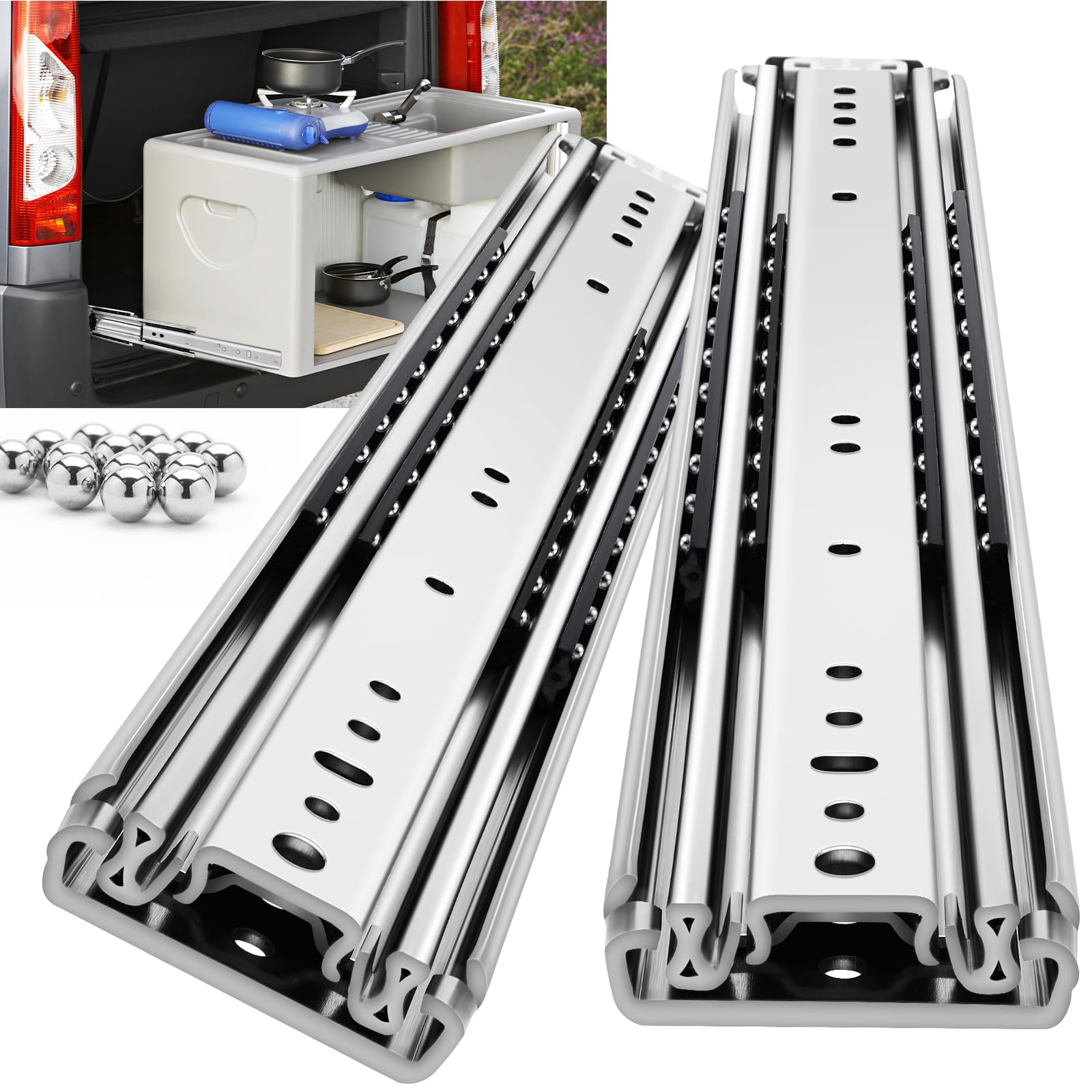

Heavy Duty Drawer Slides 12-60 Inch Full Extension Ball Bearing Rails - 440 Lbs Capacity Side Mount Cabinet Tracks for Kitchen, Office & Garage Storage Organization (1 Pair)
Free shipping on all orders over $50
7-15 days international
13 people viewing this product right now!
30-day free returns
Secure checkout
26264451
Description
1 pair high quality full extension Heavy Duty Drawer Slides with Lock for heavy drawers for example in the machine industrie. Technical details: 1.Very solid version - bearing capacity up to 440 lbs per pair 2.Material: high gloss galvanised metal. 3.Ball bearing drawer runner for a smooth and silent. 4.Featuring Lock Design. Prevent from sliding. Easy control and secure fixation. Specification: Approximate length of the yellow lock button: 1.2" (3cm) Height: 76.2mm Width: 19.2 mm Material thickness: 2.5 mm The indicated length is refering to the closed condition of the drawer runner. Extended Length is twice as long as closed. Scope of delivery: 1 pair ( 2 pieces ) drawer runners Side Mount. Attention: the mounting brackets and screws are not included.
Features
【Installation note】Suitable for 20-22 inch drawers.The space between drawer and cabinet wall need to be 0.75in each at left and right side,total 1.5in ( inside cabinet width - outside drawer width= 1.5in )一 NoteFor installation,make sure the two slide rails parallel to each other,and make sure the drawer portion slides parallel to the cabinet portion slides and in the same level. without mounting screws included,you can purchase different M6 screws according to your specific installation scene.
【MAXIMUM LOAD CAPACITY440 lb】Made of Q235 steel plate, thickness 2.5mm, with high density and high strength, the carrying capacity is 5 times more stronger than that of ordinary ones. It will keep your drawers stable and safe even carrying up to 440 lb heavy weight items,which take opening and closing test 800,000 times under full loaded without damage. Application range Goods shelf, Industrial,Mechanical Cabinets, RV, Truck, Vending machine,exhibition, heavy truck drawers,etc.
【30 years service life】The drawer slides' surface are treated with electroplated blue zinc, therefor it's with oxidation resistance and anti-corrosion ability, the service life of the slide rail could be 30 years at least. Our motto is “Use quality slides,live quality life",besides the quality, YENUO also focused on after-sales service,any quality or installing problem please feel free to contact us.
【3-fold full extension】Slides Width 3" (76mm)--length 20" (500mm)--Fully extended length40"(1000mm)---Maximum load-bearing 440 lb/200 kg.The "3-fold full extension"enable the slides to fully extend, so the drawer can be pulled out completely, which allows for the entire drawer's storage to be accessed easily; This"without lock" one doesn't have a lock handle, so it's can't be locked when it's fully closed or fully opened.You can choose the “with lock” one if needed.
【Installation NOTE】①One set includes a pair of slides without mounting screws included,you can purchase different M6 screws according to your specific installation scene. ②The 3rd section of the slides is unable to be disassembled for sake of safety,because this slides usually be used to carry up industrial grade heavy weight items. please refer to the video for the installation method.③The shorter the slide,the heavier the weight load.
